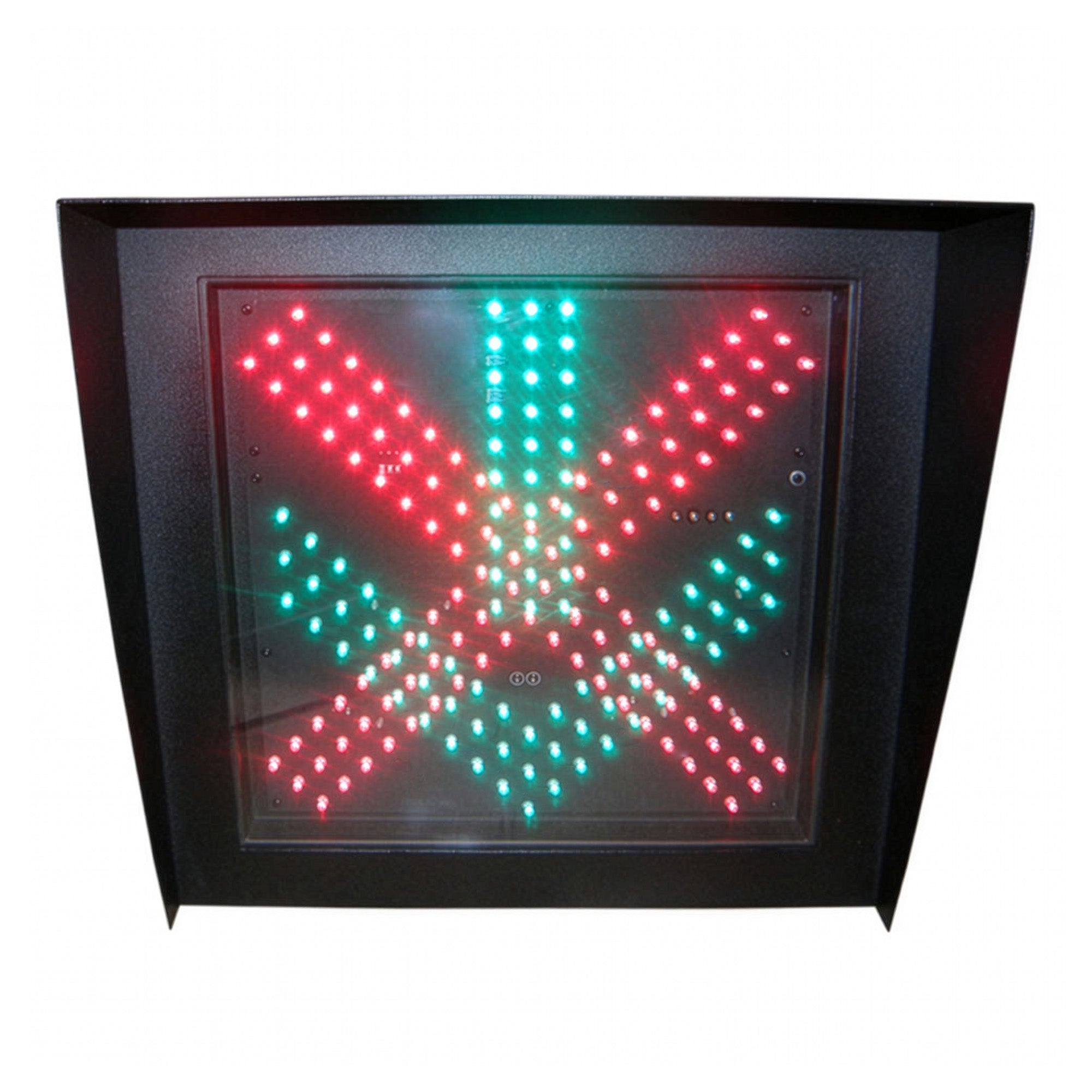

24 Inch Red X, Green Arrow Traffic Light for Toll Booth & Service Bay Lane Indicator
SKU: TL24-AC-1XA
Regular price
$899.00
Description
16 Inch and 24 Inch Extra Large Traffic Light with Red X and Green Arrow LED Direction and Lane Indicators for Toll Booths, Drive Through, Highway Lanes, Car Service Bays, Bank Tellers or anywhere you need the sign highly visible from a long distance. Outdoor rated in AC or DC Voltages.
Specifications
- 23.6" x 23.6" x 2.36" (600 x 600 x 60 mm) for 24" Light
- 160 Red LEDs; 120 Green LEDs 24 Inch
- Over 1300 Feet (1/4 Mile) Viewing Distance
- 30° Viewing Angle LEDs
- Compliance: CE, GB14887-2007
- Lifespan: 80,000 Hours
Features
- Extra Large Red X and Green Arrow LED Indicators
- Outdoor or Indoor use with Multi-layer Seal
- 'Back to back mounting' M12x30 Screws and nuts, PG9 cable gland
- Heavy Duty Steel Housing with Black Powder Coat Paint

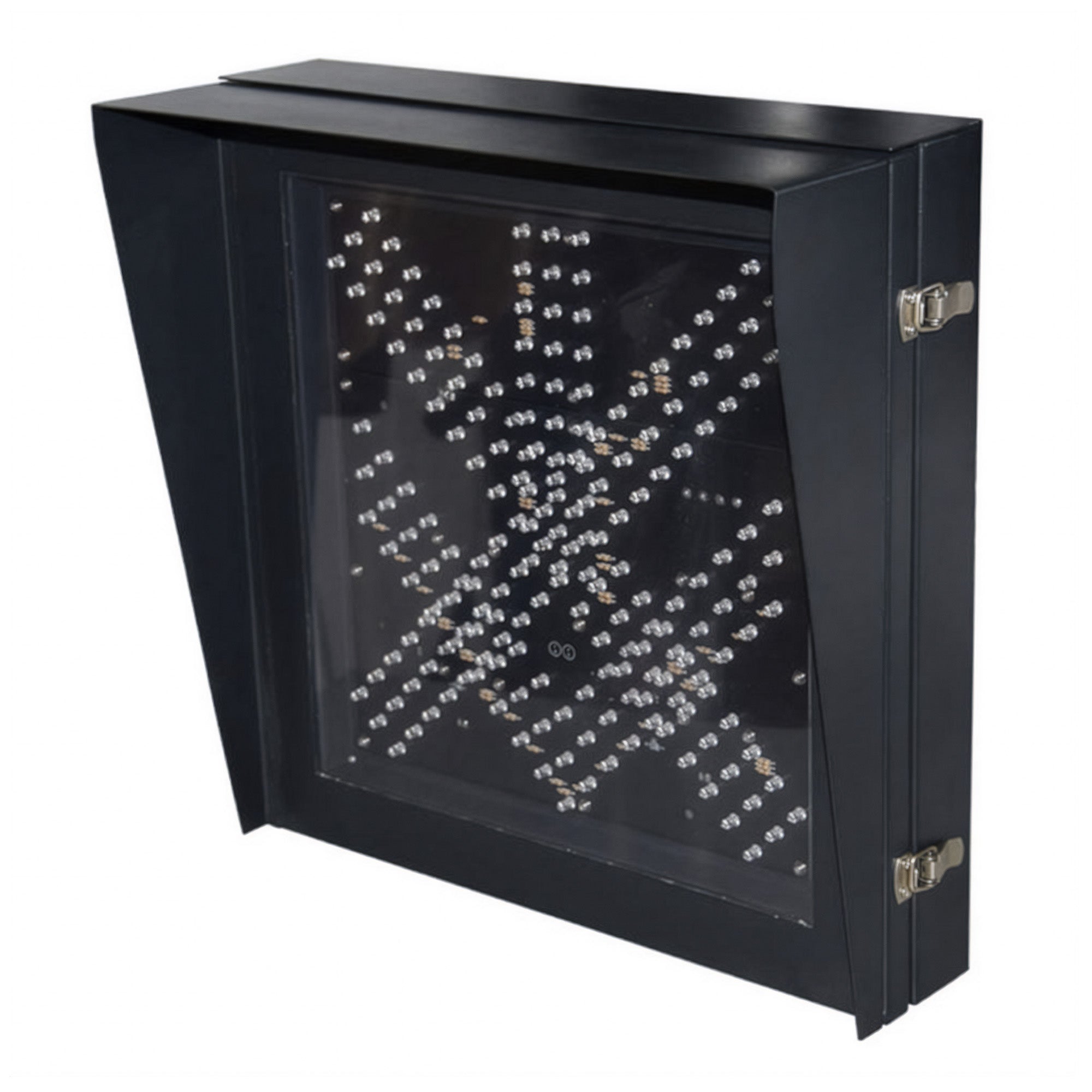

- Hinged and Latching Cover for Easy Internal Access
- Internal Screw Terminal Terminations
- Visor hood
Model Numbers:
- TL24-AC-1XA 24" AC
- TL24-DC-1XA 24" DC
24 Inch Red X, Green Arrow Traffic Light for Toll Booth & Service Bay Lane Indicator
Regular price
$899.00
Signaworks
24 Inch Red X, Green Arrow Traffic Light for Toll Booth & Service Bay Lane Indicator
Voltage
Current - Red
Current - Green
12V DC
420 mA
333 mA
24V DC
210 mA
167 mA
110V AC
42 mA
33 mA
220V AC
20 mA
16 mA
